E-Bike Conversion Kit 48V 500W 26'' Rear Motor Fit for Freewheel with 48V13Ah Down Tube Lithium-ion Battery and Charger

YOSE POWER Ebike Conversion Kit 48V 500W 26'' Rear Hub Motor Wheel and 48V13Ah Down Tube Li-ion Battery Conversion Kit DIY E-bike with Charger,LCD

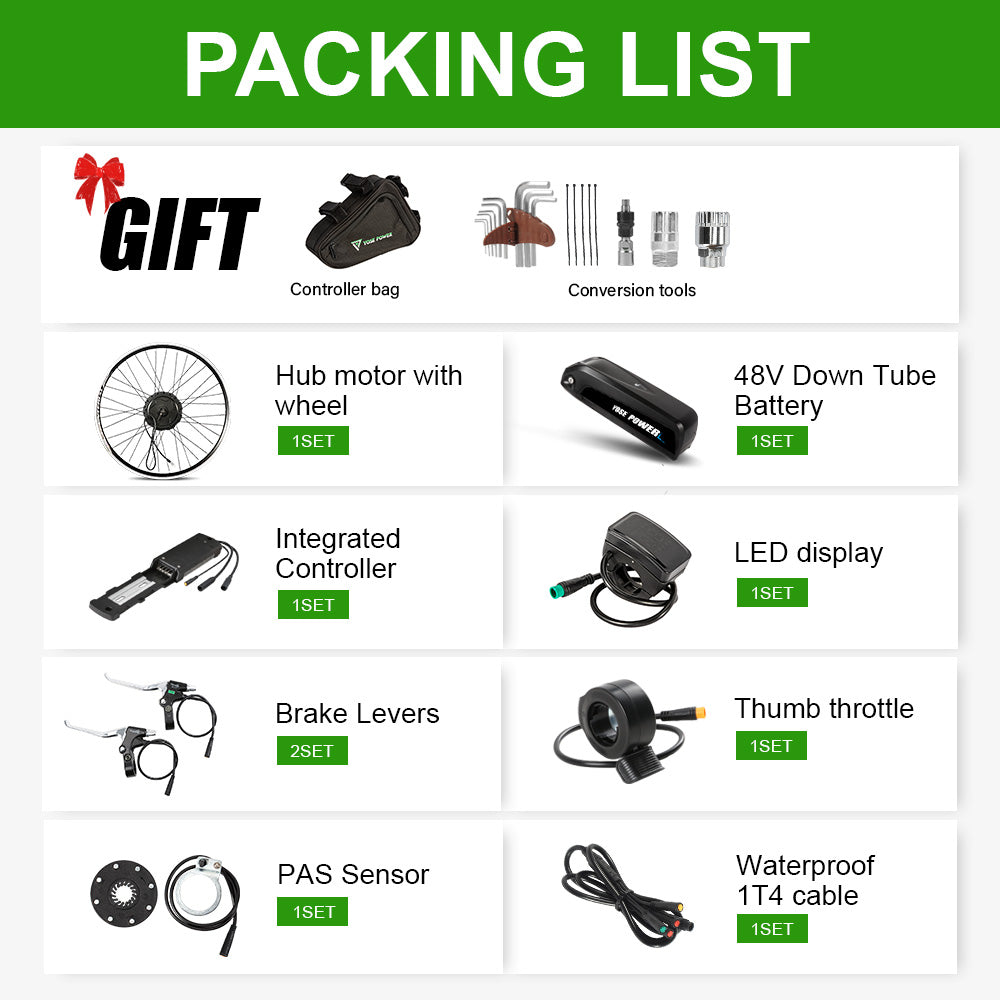

1.Technical Data and Packing list

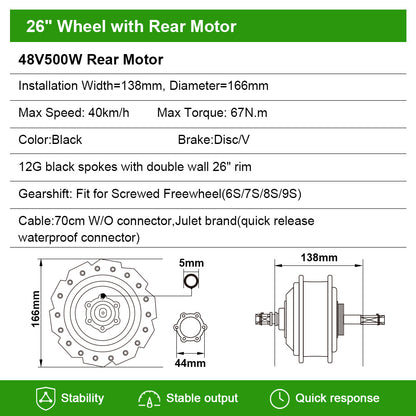

• Rear motor with 26" wheel for Freewheel x 1:

        48V500W Rear Motor, Installation Width=138mm, Diameter=166mm.
        Gearshift: Fit for Screwed Freewheel(6S/7S/8S/9S)
        12G black spokes with double wall 26" rim
        Max Speed: 40km/h
        Max Torque:67N.m
        Color:Black
        Brake:Disc/V
        Motor Cable:70cm W/O connector,Julet brand

        (quick release waterproof connector)

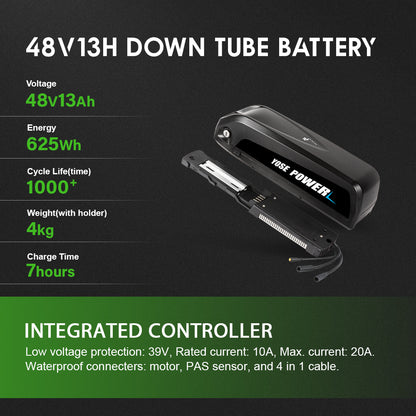

• 48V 13Ah Battery x 1:

        48V13Ah, High power 18650 cells.
        Down tube type, controller inside.

• Integrated Controller(in battery holder, Lishui Brand) x 1:

        Sine wave controller,JYT brand,Low voltage protection: 39V, Rated current: 10A,

        Max. current: 20A.
        Waterproof connecters: motor, PAS sensor, and 4 in 1 cable.

• LCD Display x 1:

        LED display with speed/PAS/battery indicator; Cable: 30cm W/O connector.
        5 Assist levels, and 6km/h traction with holding Down Button; IP65; Size:

        L58mm*W28mm*H44mm
        Model: DZ40

• PAS Sensor(Right installation) x 1:

       Cable:53cm W/O connector
       8 signals output
       Model: BZ-4(8)

• Brake Levers(Wuxing Brand) x 2:

       Wuxing Brand, with immediate interruption of the power.
       Cable:30cm W/O connector.

• Thumb Throttle(Wuxing Brand) x 1:

       Wuxing Brand,Thumb throttle.
       Cable:30cm W/O connector.

• 4 into 1 Cable x 1:

        4 in 1 waterproof connectors(quick release)
        Cable:150cm W/O connectors.

• Free Gift x 1:

        Conversion Tools

2. Warm tips

• Parcel can not be shipped to any island address,Las Vegas,Haiwai,or any PO BOX address.
• The original pedal sensor in kit isn't fit for Hollowtech II and Octalink. The brake levers are not fit for bike with hydraulic brake.
• Due to long installation instructions for kits, in order to save resources, we do not have the printed version packing in. You can download the required video installation instructions in the download area of our official website，We will also send an electronic version of the installation instructions after you purchase. Thank you for your contribution to saving resources!
• Please read the installation instructions carefully before you start, this instruction will help you to install the product effectively.
• If you want to return the product, please return the complete product as soon as possible and ensure the product has not been used and doesn’t affect secondary sales.
•
  NOTE：Please set the maximum driving speed of the e-bike according to the local traffic laws to prevent the safety risks caused by excessive speed!

3. Important notice for recycling of used batteries& motor kits

• As a professional seller, we strictly abide by local laws and regulations to ensure product's quality, transportation and storage safety, environmental protection.
• According to electronic consumer goods recycling regulations, batteries and motor kits  must not be disposed of with household ordinary waste.
• Consumers are obliged to dispose of the used electronic goods to the professional recycling agency in local for proper disposal. They must not be arbitrarily throw into the trash. Please protect the environment!
