Description

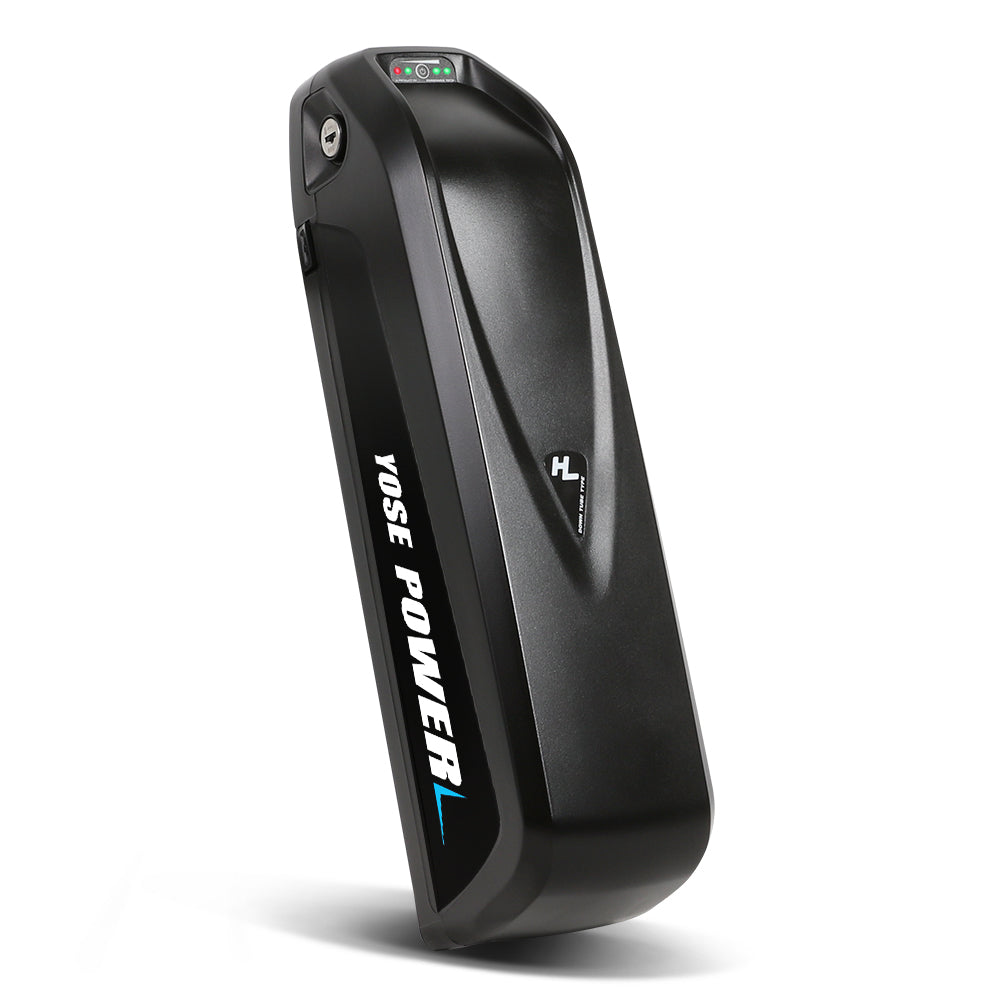

36V17.4Ah Down Tube 18650 Pedelec Lithium-ion Battery, 4Pins Plug and XT60 Adapter , for 250W-900W Motor with USB Port, Charger,Key,Discharger Connector (not same as 36V Hailong Battery)

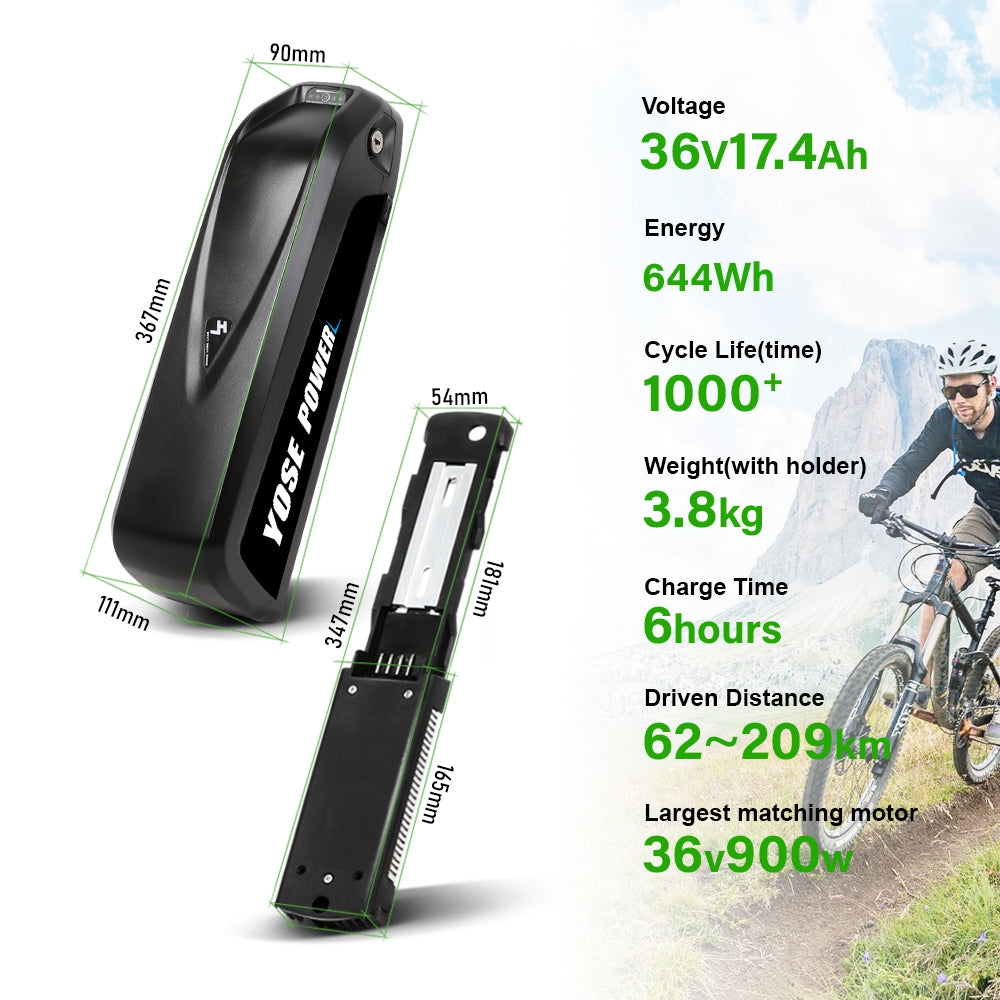

1.Technical Data

  • Voltage: 36V
  • Capacity: 17.4Ah
  • Energy: 644Wh
  • Discharging plug4 Pins
  • Weight(with holder): 3.8kg
  • Cell: DMEGC-29E
  • Cycle Life(time): 1000+
  • Standard Current: 10A
  • Max Current: 30A
  • Protect Current: 60A
  • End Voltage: 28V
  • Charging fuse: 10A

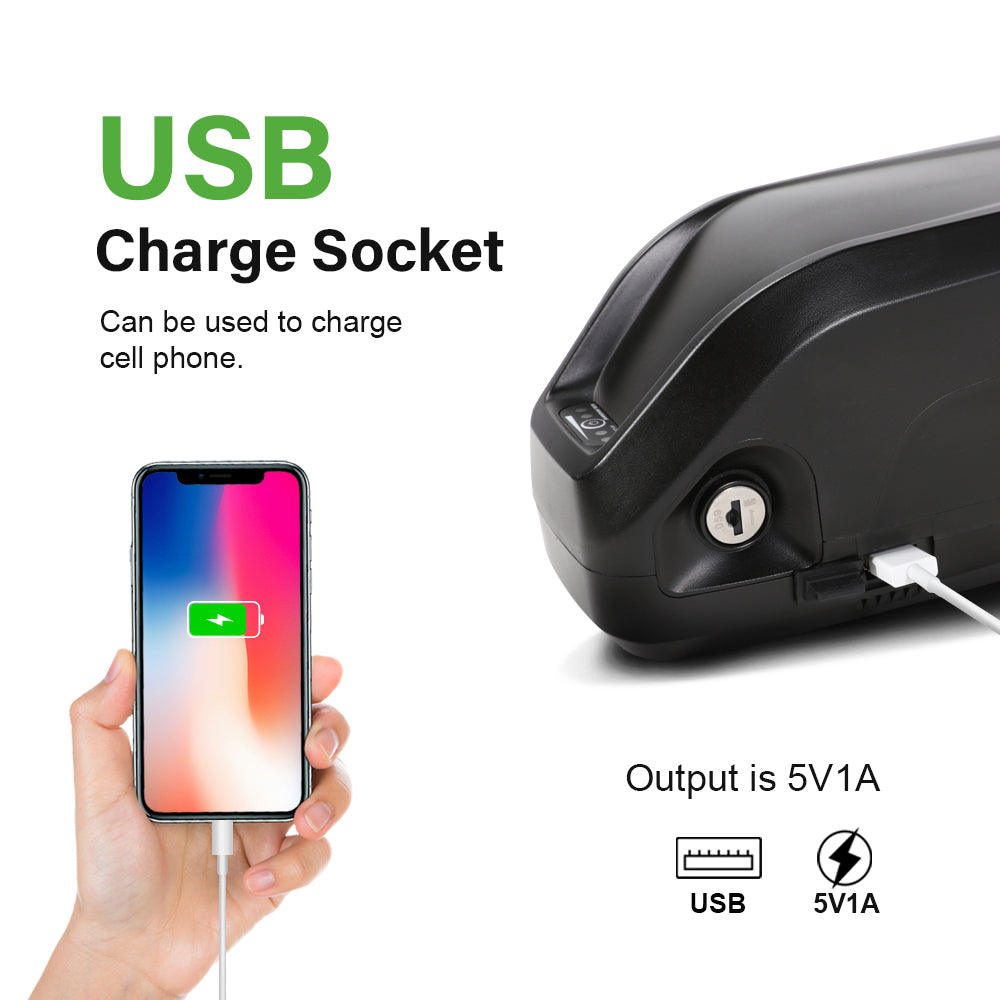

  • USB Output Voltage/Current: 5V1A
  • Discharging fuse: 50A
  • Charge Voltage: 42V
  • Charge Current: 3A

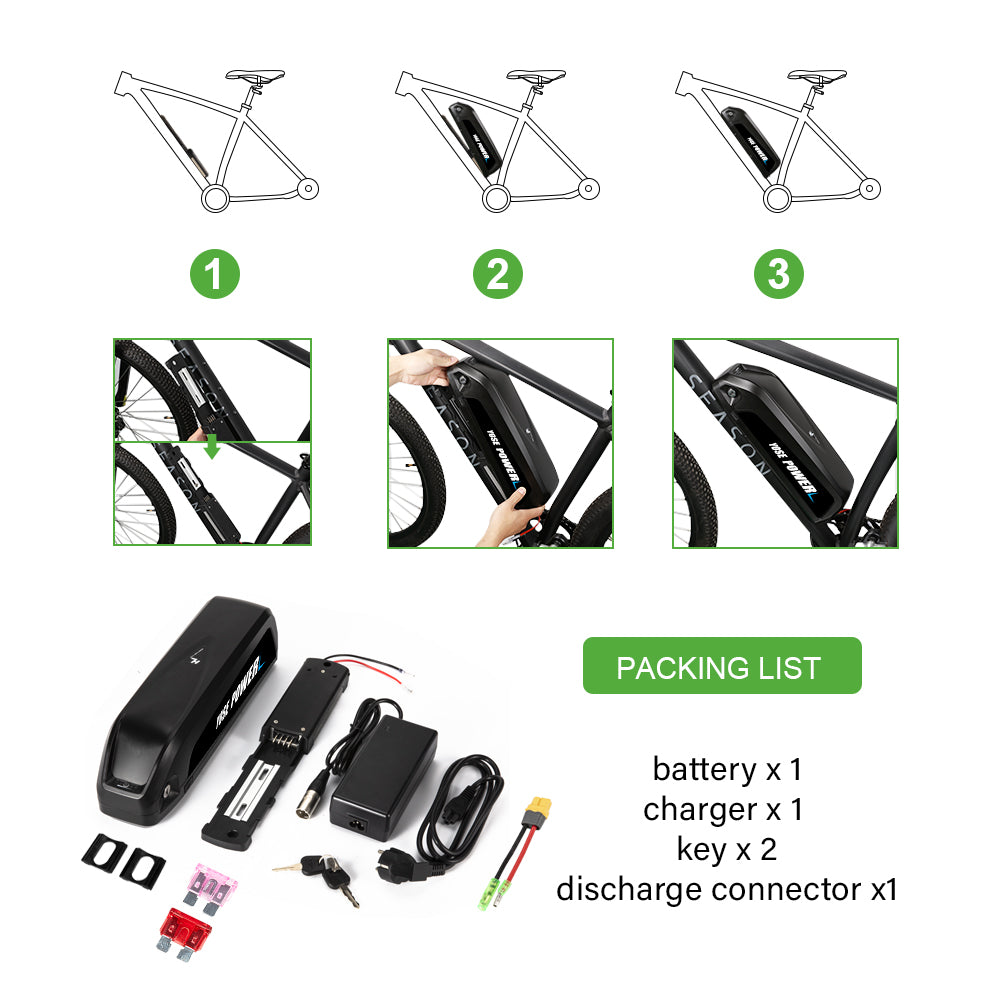

2.Packing list

  • Battery x 1
  • Charger x 1
  • Key x 2
  • Discharge connector x1

3.Warm tips

  • Parcel can not be shipped to any island address,Las Vegas,Haiwai,or any PO BOX address.
  • This Battery not same as 36V Hailong Battery with 4 Pins Plug.
  • Please read the instruction manual carefully after received the package, this will help you to use the product effectively.
  • Battery delivery cost much more than ordinary goods, in order to reduce the return shipping cost, please make sure: battery and motor should have the same voltage.e.g. 36V20Ah vs 36V250W.
  • If you want to return our battery back, please pay attention to the following points to avoid short circuit caused by improper operation :
  1.  If the battery has a switch, be sure to turn off the power switch.
  2.  Please keep the positive and negative poles of the battery insulated just like the battery you received.
  3.  Please use foam or other materials to fix the battery to avoid the battery shake in the carton.

SKU:EBB-36174HL1-2-US16
E-Bike battery 36V17.4Ah Down Tube Pedelec Lithium-ion Battery for 250W-900W Motor with USB Port
